Product Details
Bowers & Wilkins CWM7.5 S2 In-Ceiling Speakers
-- See nothing, hear everything --

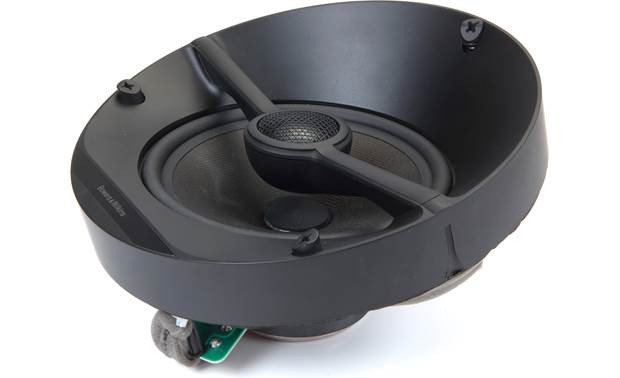

Designed for down-firing in-ceiling applications, CCM7.5 S2 can be used as the left, centre, right and rear or even Atmos channels speakers in a discreet home cinema system. Its configuration includes a 25mm Carbon Dome tweeter, a 180mm Continuum cone mid/bass cone angled to the mounting surface allowing for easy direction of the whole array towards the listener to ensure they hear the correct balance of sound.
Technical Specifications
Technical features:
Carbon Dome tweeter, Continuum mid/bass.
Description:
2-Way In-Ceiling System
Drive units:
1x 25mm (1 in) Carbon Dome high-frequency
1x 180mm (7 in) Continuum cone mid/bass
Frequency range -6dB:
-6dB at 25Hz - 33kHz
Frequency Response -3dB:
32Hz - 28kHz (+/-3dB)
Sensitivity:
90dB spl (2.83Vrms, 1m)
Harmonic distortion:
2nd and 3rd harmonics (90dB, 1m)
<1% 70Hz - 33kHz
<0.5% 100Hz - 28kHz
Nominal impedance:
8ohm (minimum 4.8ohm)
Recommended amplifier power:
25W - 150W into 8ohm on unclipped program
Dimensions:
Frame diameter: 290mm (11.4in)
Depth behind surface: 128mm (5in)
Cut-out diameter: 254mm (10in)
Net weight 3.1kg
Grille Finish: White
B&W CCM7.5s2 - Printable Information Sheet
