Bowers & Wilkins CWM7.4 S2 - 2.5-Way In-Wall Speaker
B&W Reference Series In-Wall Speakers - for situations when you want near-invisible loudspeakers but refuse to compromise on sound quality. CI 700 Series models feature matching performance levels to their in-room in the 700 Series counterparts. (More information)
- Availability:
- Call to Buy
- Categories:
- Speakers
- Sub-categories:
- In-Wall Speakers
- Brand:
- Bowers & Wilkins
- Delivery:
- Contact us for Delivery Charges
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Related Products (View more related products)
-
Bowers & Wilkins CWM7.5 S2 2-Way In-Wall Speaker
B&W Reference Series In-Wall Speakers - for situations when you want near-invisible loudspeakers but refuse to compromise on sound quality. CI 700 Series models feature matching performance levels to their in-room in the 700 Series counterparts.$1,099(per each) -
Bowers & Wilkins CWM7.3 S2 In-Wall Speaker
B&W Reference Series In-Wall Speakers - for situations when you want near-invisible loudspeakers but refuse to compromise on sound quality. CI 700 Series models feature matching performance levels to their in-room in the 700 Series counterparts.$2,699(per each) -
Bowers & Wilkins: CCM682 High Performance In-Ceiling Speaker
... the construction of this high-performance 8in in-ceiling speaker results in a deeper, faster bass, and an excellent off-axis response.$1,699(per pair) -
Bowers & Wilkins: CCM683 High Performance In-Ceiling Speaker
... featuring a 200mm (8in) Kevlar® cone bass/midrange driver and a Nautilus swirl-loaded aluminium dome tweeter that pivots for adjustable off-axis treble response.$1,399(per pair)
Product Categories
Product Details
Bowers & Wilkins CCM7.4 S2 In-Wall Speakers
-- See nothing, hear everything --
Bowers & Wilkins CCM7.4 S2 In-Wall Speakers - Left, Center, Right.

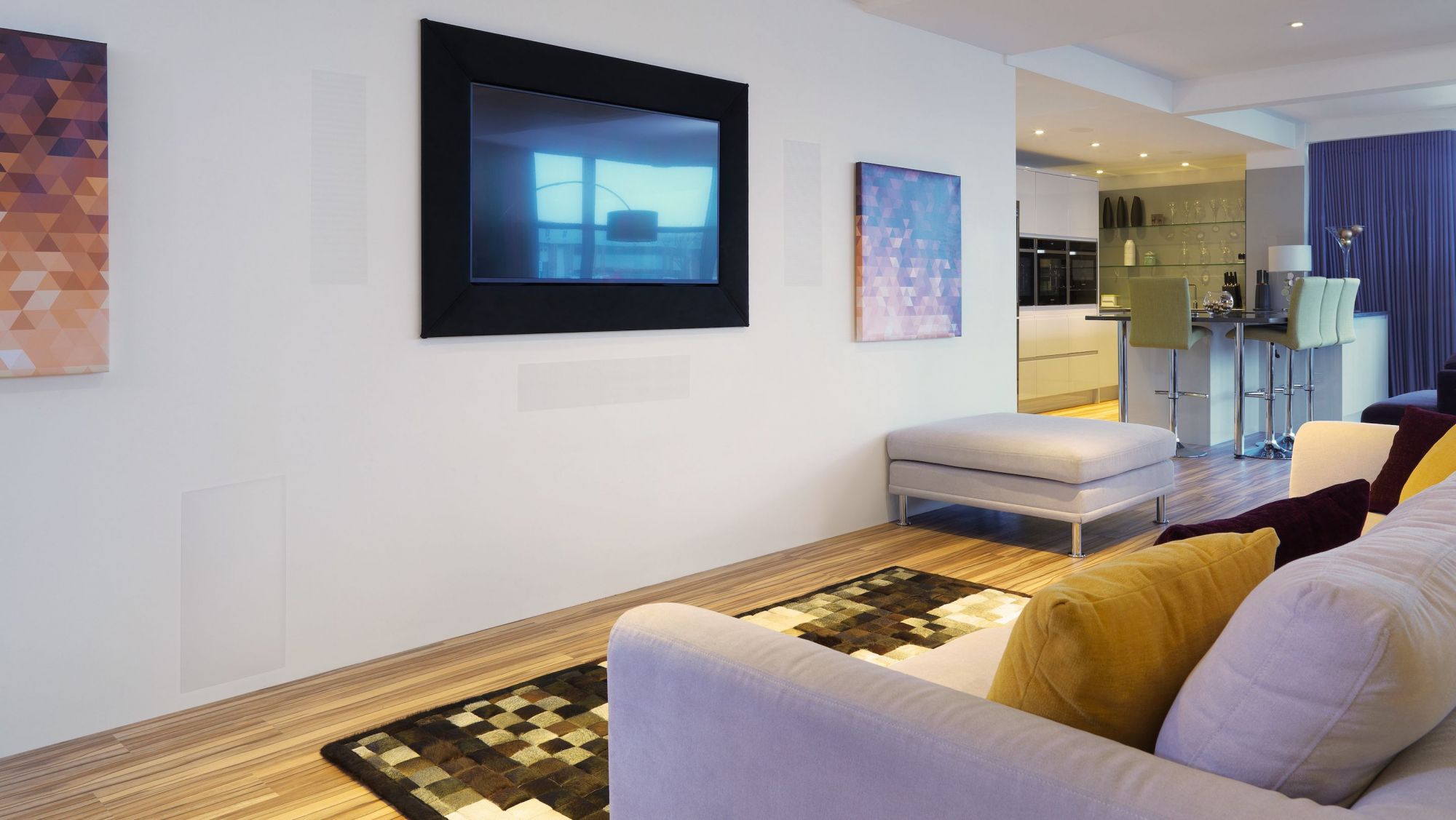

Locate these around your display as part of an excellent home theatre solution.
Designed for wall-mounted left, center and right speaker positions in a discreet home cinema system, CWM7.4 S2 ensures crystal-clear dialogue and dramatic special effects.

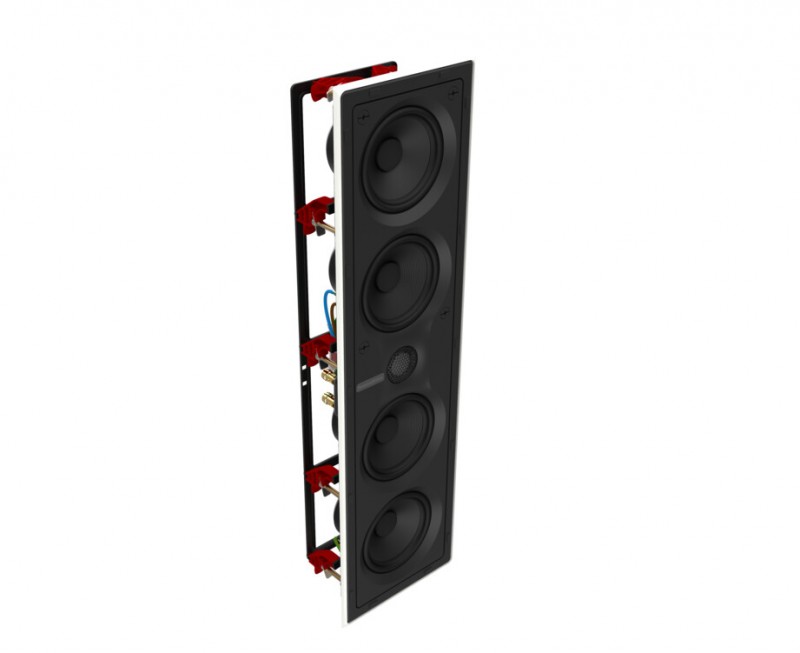

Unique to Bowers & Wilkins the trademark QuickDogs fixing method ensures simple and quick installation requiring tools only to cut the mounting hole.

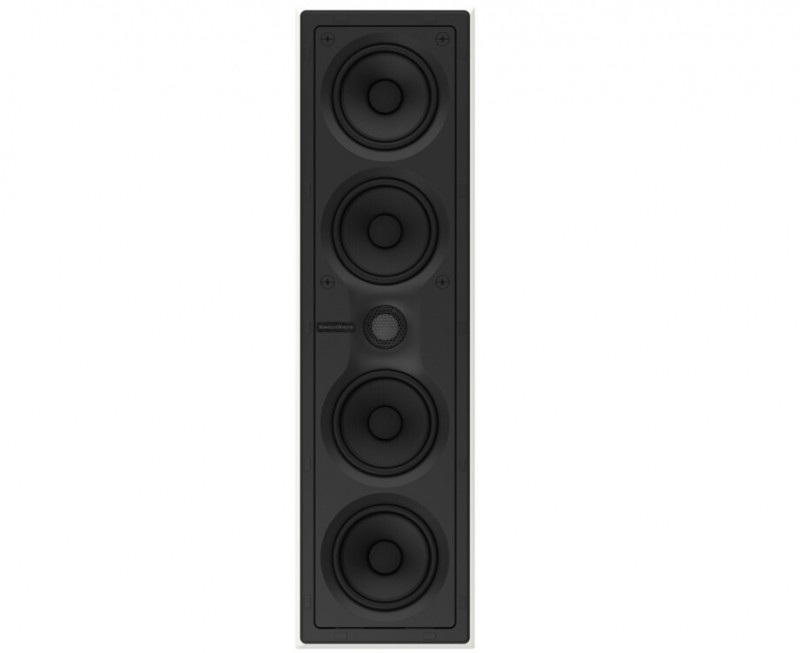

Its 2.5-way configuration features a single Carbon Dome tweeter, twin 100mm (4in) Continuum cone mid-range units and twin 100mm (4in) Aramid Fibre/paperbass cones.
Technical Specifications
Technical features:
Carbon Dome tweeter, Continuum mid-range, Aramid Fibre/Paper bass cones.
Description:
2.5-Way In-Wall System
Drive units:
1x 25mm (1 in) Carbon Dome high-frequency
2x 100mm (4 in) Continuum cone mid/bass
2x 100mm (4 in) Aramid Fibre/Paper profile bass
Frequency range -6dB:
-6dB at 43Hz - 33kHz
Frequency Response -3dB:
45Hz - 28kHz (+/-3dB)
Sensitivity:
86dB spl (2.83Vrms, 1m)
Harmonic distortion:
2nd and 3rd harmonics (90dB, 1m)
<1% 80Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal impedance:
8ohm (minimum 4.9ohm)
Recommended amplifier power:
25W - 150W into 8ohm on unclipped program
Dimensions:
Frame height: 625mm (24.6in)
Frame width: 175mm (6.9in)
Depth behind surface: 92.5mm (3.64in)
Cut-out height: 597mm (23.5in)
Cut-out width: 147mm (5.8in)
Protrusion: 8mm (0.3in)
Net weight 6.2kg (13.73 lb)

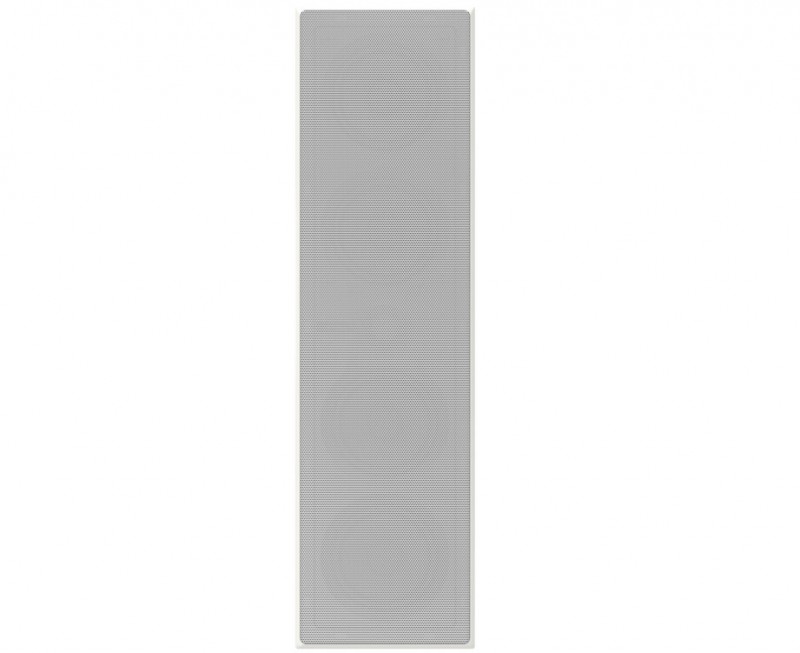

Grille Finish: White
