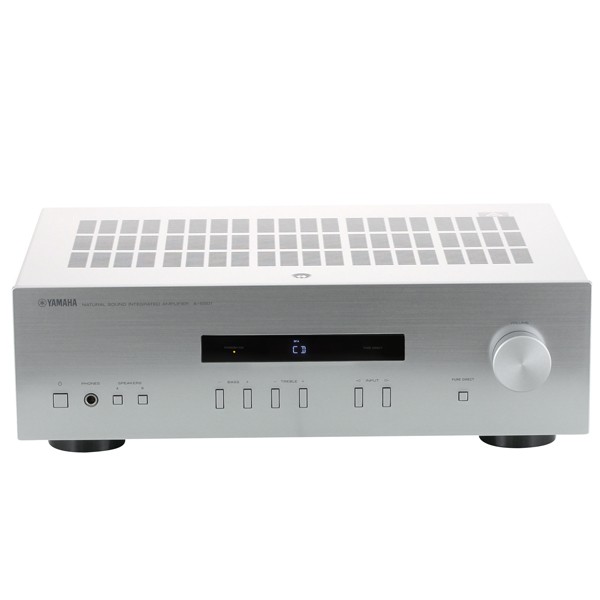

Yamaha AS201 stereo amplifier - DISCONTINUED NO LONGER AVAILABLE
A Hi Fi Amplifier for enjoying excellent sound. High sound quality and sophisticated design based on Yamaha’s rich experience and high-end Hi Fi. (More information)
- Availability:
- Discontinued
- Categories:
- Hi-Fi
- Sub-categories:
- Stereo Amplifiers
- Brand:
- Yamaha
- Delivery:
- FREE Delivery Australia Wide
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Buy this Product
Your Price
$549
(each)
FREE Delivery Australia Wide
This product is currently unavailable to order.
Related Products (View more related products)
-
Yamaha A-S1200 Integrated Stereo Amplifier
Nostalgic Hi-Fi design. Today’s Hi-Fi technology. A nod to the past with the latest technology for a purely music sound.$3,699(per each) -
Yamaha R-N800A Network Receiver
From streaming services to high-resolution sound sources, the Yamaha R-N800A delivers music enjoyment with a modern HiFi style.$1,699(per each) -
NAD C388 Hybrid digital DAC amplifier
Classic Amplifiers. Intelligent. Powerful. Efficient.$2,599(per each) -
SALE ENDS 2nd Dec at 2:32pm
Marantz Model 50 integrated amplifier
MODEL 50 was designed and engineered to be thoroughly modern, yet timeless. Engineered with Marantz proprietary technologies, this integrated amplifier pushes the boundaries of audio equipment design to reveal the musicality in all your stereo source... read more$2,560(per each)Was $3,200Save $640.
Product Categories
Product Details
- Yamaha high sound quality, created by rich experience and tradition, and high technological expertise
- Pure Direct Mode for greater sound purity
- Simple and sophisticated design
- Phono MM terminal for vinyl playback
- Screw-type speaker terminals
- Speaker selector and speaker terminals for two systems
- Simple design remote control
- Head phone terminal
Receiver / Integrated Amplifier
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) | 140 W + 140 W | |
|---|---|---|
| Maximum Power(8 ohms, 1 kHz, 10% THD) | 100 W + 100 W | |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 125 W/150 W/165 W/180 W | |
| Frequency Response | 10 Hz?100 kHz(0 ± 0.5 dB / 0 ± 3.0 dB) | |
| Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) | 0.2% | |
| Signal-to-Noise Ratio (CD) | 100 dB (S: 500 mV) | |
| Input Sensitivity (CD) | 500 mV / 47 k-ohms | |
| Standby Power Consumption | 0.5 W | |
| Dimensions (W x H x D) | 435 x 141 x 333 mm; 17-1/8" x 5-1/2" x 13-1/8" | |
| Weight | 6.7 kg; 14.8 lbs. | |
Features
Yamaha High Sound Quality, Created by Rich Experience and Tradition, and High Technological Expertise
Yamaha, with a long history of 125 years as a musical instrument maker, also has a high reputation for Hi Fi components. The A-S201 was created by taking advantage of this rich experience and high technological expertise. Based on the concept of ?Natural Sound", for reproducing all music as it really sounds, and built with scrupulous care from circuit design to basic sound production, even though an entry model it reproduces high sound quality and musically rich sound.
100W × 2 High Output Power* and High Sound Quality Circuit Design
The A-S201, with 100W* × 2 high drive power that's above its class, has a high sound quality design that minimises the length of signal routes and optimises the circuit layout. Positioning the power transformer near the power amp circuit reduces power loss while improving peak power supply capacity to enable high volume output. The signal ground and power supply ground are connected at one point, eliminating mutual interference to achieve a higher S/N ratio. The result is sound filled with clarity and a feeling of openness.
* 8 ohms, 40Hz?20kHz, 0.2% THD
Pure Direct Mode for Greater Sound Purity
Engaging the Pure Direct Switch causes the audio signal to bypass the control circuits for bass and treble, balance and the back buffer amp. This improves sound quality while maintaining full output capacity. Shortening the signal route improves sound purity, helping to reproduce even the most delicate musical nuances.
Simple and Sophisticated Design
The A-S201 inherits the simple and sophisticated design that Yamaha Hi Fi audio is famous for. With an elegant hair line finish, it harmonises beautifully with other Hi Fi audio equipment. The operating buttons and volume knobs also show our commitment to simplicity and ease of use.
Phono MM Terminal for Vinyl Playback and Screw-type Speaker Terminals
The A-S201 has one MM phono input terminal for connecting a record player. A total of five input terminals mean that it can be the central unit for different types of audio systems. And its large screw-type speaker terminals provide firm connections with thick speaker cables.
Power Saving
A power management function automatically cuts off the power (switches to standby mode) when the amplifier has not been operated for a long time. It can be set to 2, 4, 8 or 12 hours, or off. In addition, power consumption during standby is only 0.5W, achieving good energy saving performance.
Other Notable Features
? Simple design remote control
? Speaker A, B or A+B selection
