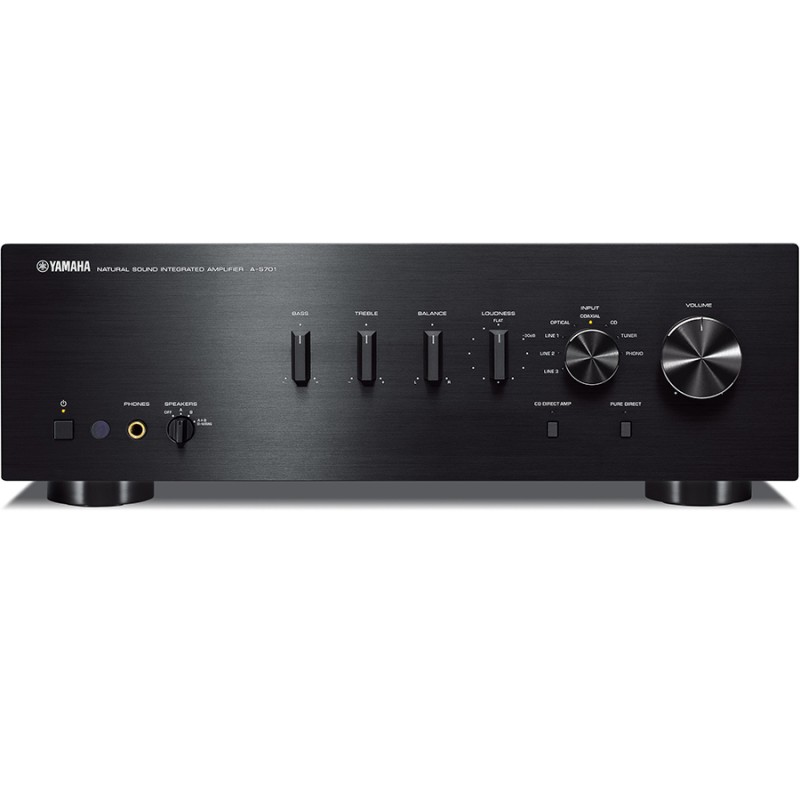

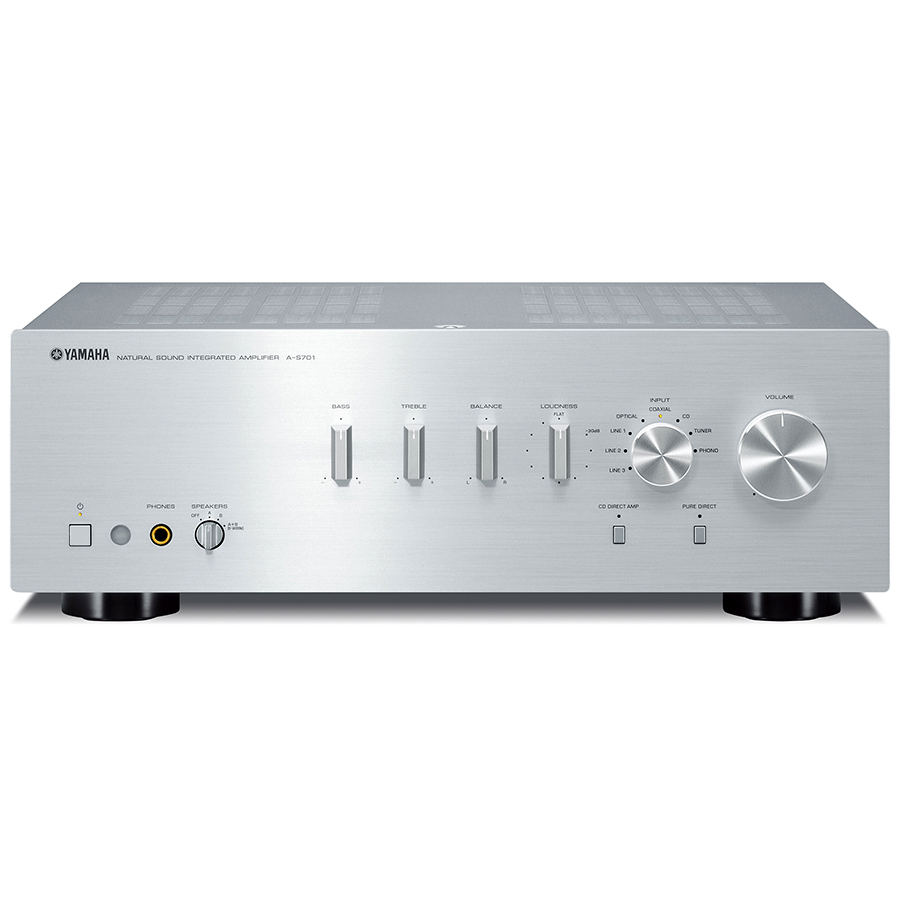

Yamaha A-S701B: Stereo Amplifier
Extremely pure sound quality and outstanding drive power. This integrated amplifier provides a pure connection to all of your music with a range of analogue and digital inputs. (More information)
- Availability:
- Call to Buy
- Categories:
- Hi-Fi
- Sub-categories:
- Stereo Amplifiers
- Brand:
- Yamaha
- Delivery:
- Contact us for Delivery Charges
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Related Products (View more related products)
-
Yamaha R-N800A Network Receiver
From streaming services to high-resolution sound sources, the Yamaha R-N800A delivers music enjoyment with a modern HiFi style.$1,699(per each) -
Denon: PMA-1700 Stereo Integrated Amplifier
Featuring advanced ultra-high current single push-pull circuit power with Advanced AL32 Processing Plus, the Denon PMA-1700NE integrated amplifier delivers music that’s faithful to the original recording.$2,999(per each) -
NAD C368 hybrid digital DAC amplifier
Classic Amplifiers. Intelligent. Powerful. Efficient.$1,899(per each) -
Denon: PMA-600NE Stereo Integrated Amplifier with Bluetooth
...designed for the aspiring music enthusiast, the Denon PMA-600NE is the superior choice for those who want to build their first 2-channel Hi-Fi system.$999(per each)
Product Categories
Product Details
Yamaha A-S701B Stereo Amplifier...

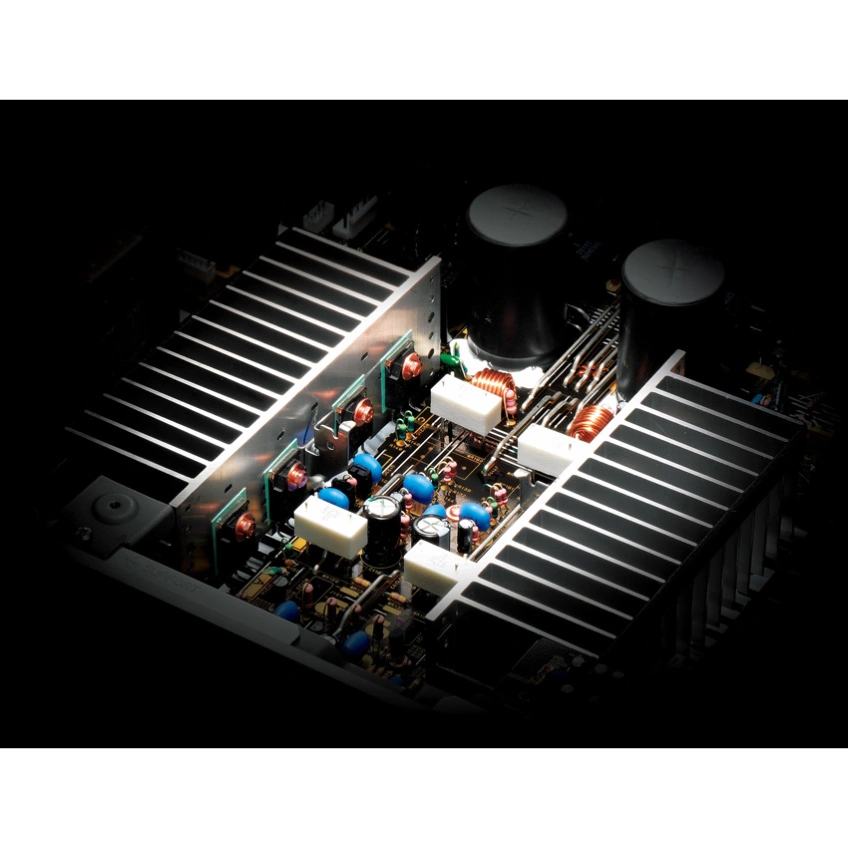

... ToP-ART Design and ART Base ensure optimum sound; when processing transmission of the audio signal is simple and direct there is less chance of it being affected by noise and distortion. Yamaha's amplifier design technology called ToP-ART features an I/O (input to output) Direct Symmetrical Design, with left and right channels organised in a straight, symmetrical layout for highest signal purity. In addition, the ART (Anti-Resonance and Tough) Base bottom chassis and a solid centre bar provide high-rigidity support and vibration damping. These Yamaha design innovations contribute to this amplifiers' rich audio reproduction with abundant musicality.
Created by Yamaha's Rich Experience and Tradition, and High Technological Expertise
Yamaha has a history of over 125 years as a musical instrument maker.
The A-S701 is created by taking advantage of this rich experience and high technological expertise. Based on the concept of ?Natural Sound", for reproducing all music as it really sounds, and built with scrupulous care from circuit design to basic sound production, even though an entry model it reproduces high sound quality and musically rich sound.
Yamaha A-S701 Amplifier Specifics:
Amplifier
- Minimum RMS Output Power: 100W x2 (8ohms, 20Hz - 20kHz, 0.019%THD)
- Maximum Power: 160w x2 (4 ohms, 1kHz, 0.7% THD)
- High Dynamic Power/Channel: (8/6/4/2 ohms = 140/170/220/290w)
- Damping Factor: 240
- Frequency Response: 10 Hz-100 kHz +/-1.0 dB
- Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz): 0.019% (50 W/8 ohms)
- Signal-to-Noise Ratio (CD): 99dB

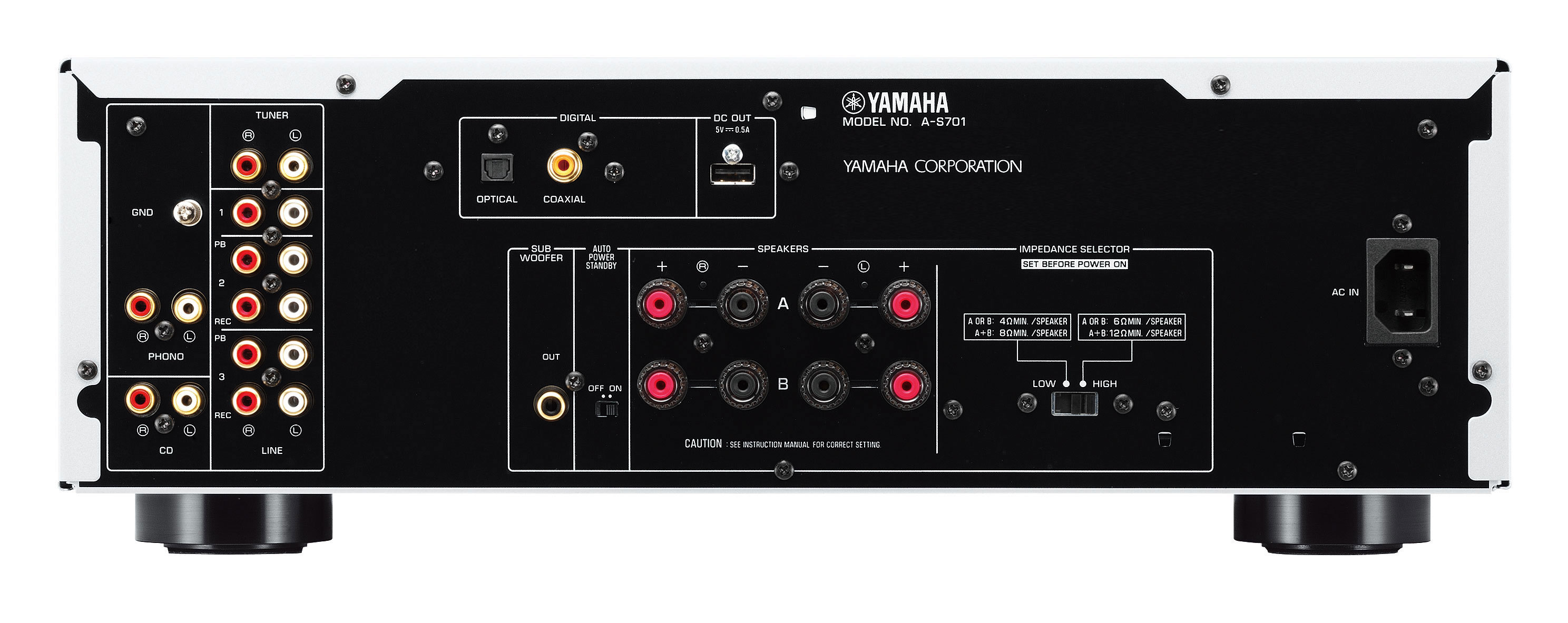

Inputs / Outputs
- Audio In/Out: 8/2
- Digital Input: Optical/Coax
- Digital Coax: 1
- Subwoofer Out: Yes
- DC Output
- Standby Power Consumption: 0.5w
- Auto Power Standby
Dimensions
- W x H x D (mm) 435 x 151 x 387
- Weight (kg) 11.2
