Stealth Acoustics B30 - Invisible Subwoofer
The Stealth Acoustics Model B30G is a two-panel monaural subwoofer speaker system that becomes completely invisible after installation. (Requires Stealth Acoustics 255R Amplifier) (More information)
- Availability:
- Discontinued
- Categories:
- Speakers
- Sub-categories:
- Wall Mounted Speakers, Subwoofers, Invisible Speakers, In-Wall Speakers
- Brand:
- Stealth Acoustics
- Delivery:
- FREE Delivery Australia Wide
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Buy this Product
Your Price
$1,699
(each)
FREE Delivery Australia Wide
This product is currently unavailable to order.
Related Products (View more related products)
-
The Sonance Invisible Series is a custom installed product and we recommend them to be professionally installed by Vision Hifi or an approved installer. Sonance Invisible Series is the ultimate expression in Architectural Audio. Installed flush into the... read more -
Focal JM Labs Aria CC900 Centre Speaker (prime walnut) - Currently Unavailable
Focal Aria CC 900: 2-way center speaker - Available in Gloss Black or Prime Walnut$1,400(per each) -
Sonance Visual Performance VP62R In-Ceiling Speakers
Sonance Visual Performance VP62R 6" round speaker (pair)$899(per pair)
Product Categories
Product Details

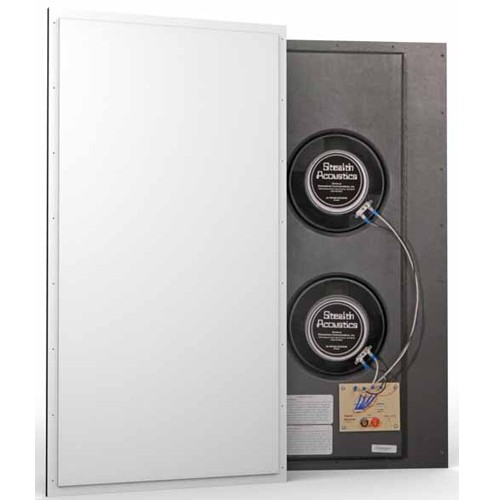

The Stealth Acoustics Model B30G is a two-panel monaural subwoofer speaker system that becomes completely invisible after installation. The subwoofer has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard.
The B30G may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods may be supported using special techniques.
Ideal for any surround sound, foreground music or whole-house audio system that needs extra bass output, each B30G panel incorporates two acoustically coupled, high-quality, high-power 8" (203 mm) cone woofers. The panels work in pairs as a monaural output subwoofer. This two-panel system allows each panel to be placed wherever they perform best, free of visual concerns that may conflict with architectural features. B30G panels may be mounted separately or stacked to achieve desired acoustical results. For stereo subwoofers, four panels should be employed.
Using acoustic lever principals, the B30G provides exceptional bass output from 20Hz to 160Hz by trading off excursion for surface area to propagate bass waveforms. Each panel has 331 sq. in. (840 sq. cm) of active area for a total of 662 sq. in. (1680 sq. cm) for both panels ? nearly twice that of a typical 12" (304 mm) woofer.
Stealth Acoustics recommends the companion Model 255R 250-watt subwoofer amplifier/crossover as a matched amplifier for the B30G subwoofer speakers. Stealth Acoustics also offers a line of full-range speaker panels that when combined with the B30G, deliver a complete, totally invisible audio solution.
