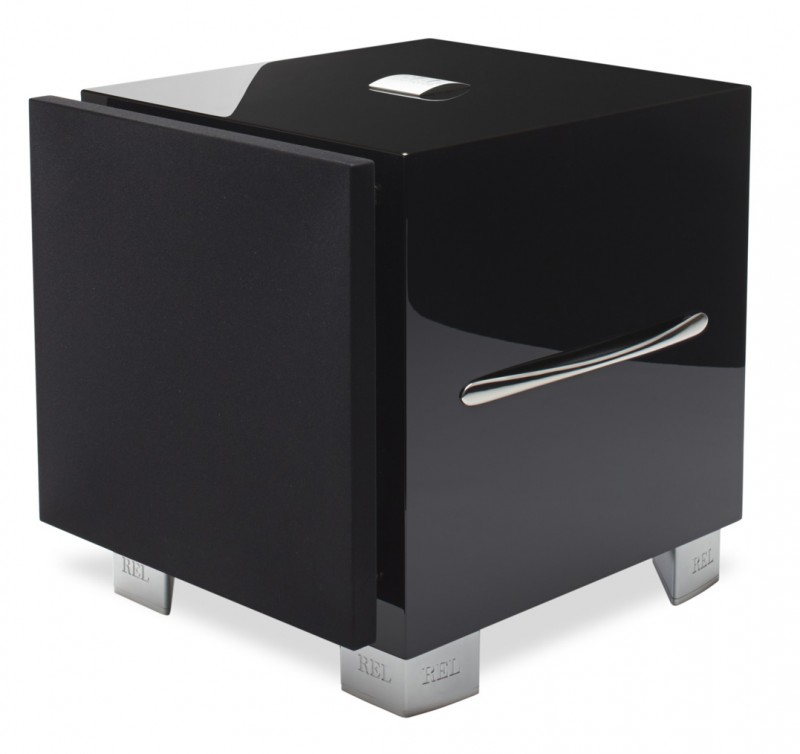

REL S-2 subwoofer

REL S-2 subwoofer

Fast, Fun & Powerful The Compact REL S/2 (More information)

 Need affordable installation?

Availability:
Discontinued
Categories:
Speakers
Sub-categories:
Subwoofers
Brand:
REL
Delivery:
FREE Delivery Australia Wide
Need Affordable Installation?

For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .

Buy this Product

Your Price $2,499 (each)
FREE Delivery Australia Wide

This product is each.

This product is currently unavailable to order.

Related Products (View more related products)

Product Categories

Product Details

Whilst S/2 may be the least expensive, most compact chassis in the S range, it would be a mistake to think of it as anything but a true thoroughbred. Fast, tuneful, fun and exceptionally dynamic, S/2 permits those with limited space or compact speakers to enjoy the benefits of Serie S performance. S/2 offers a powerful 250W NextGen Class D amplifier with a fast, lightweight driver and matching passive in a carefully damped cabinet to produce bass that is quite extraordinary for such a modestly-sized enclosure.

Snap & Attack

Anodized Aluminium Dustcap

S/2's driver receives a new purpose-designed anodized aluminium dustcap. This both stiffens the cone structure, resulting in improved transient response (snap and attack) while lowering the moving mass some 15%. Careful tuning of this unit to cabinet volume and the new matching downfiring passive driver results in outstanding performance for a model of this size and price. Powerful, fast and tuneful is the S/2.

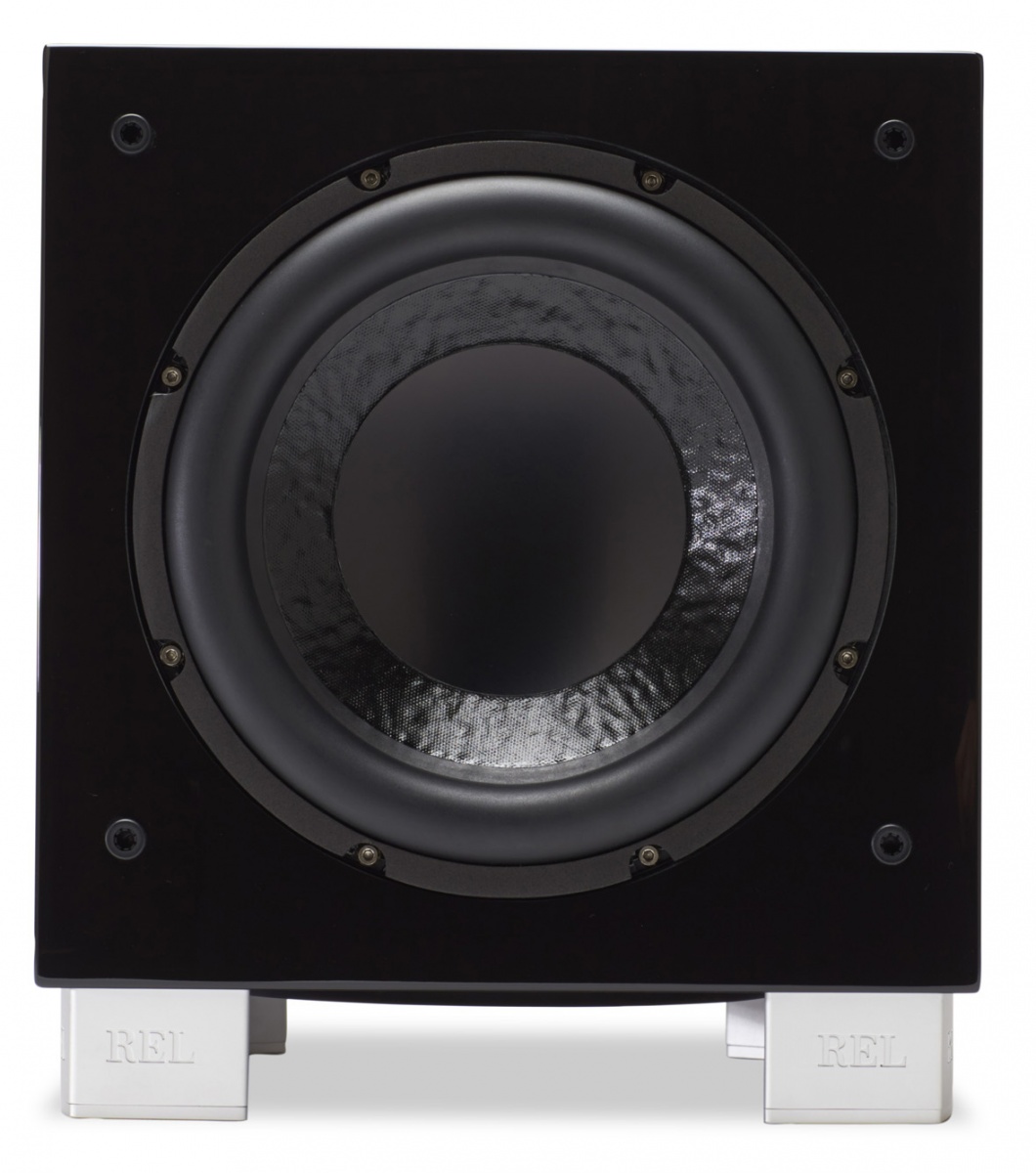

REL S2 Front

Clean Bass

Matching Passive Driver

REL's passive drivers are carefully matched to the active. In the case of S/2, we literally use the same driver as S/2 for a precise match, then tune the resonant frequency a little lower to extend the bass performance downward for a cleaner overall effect.

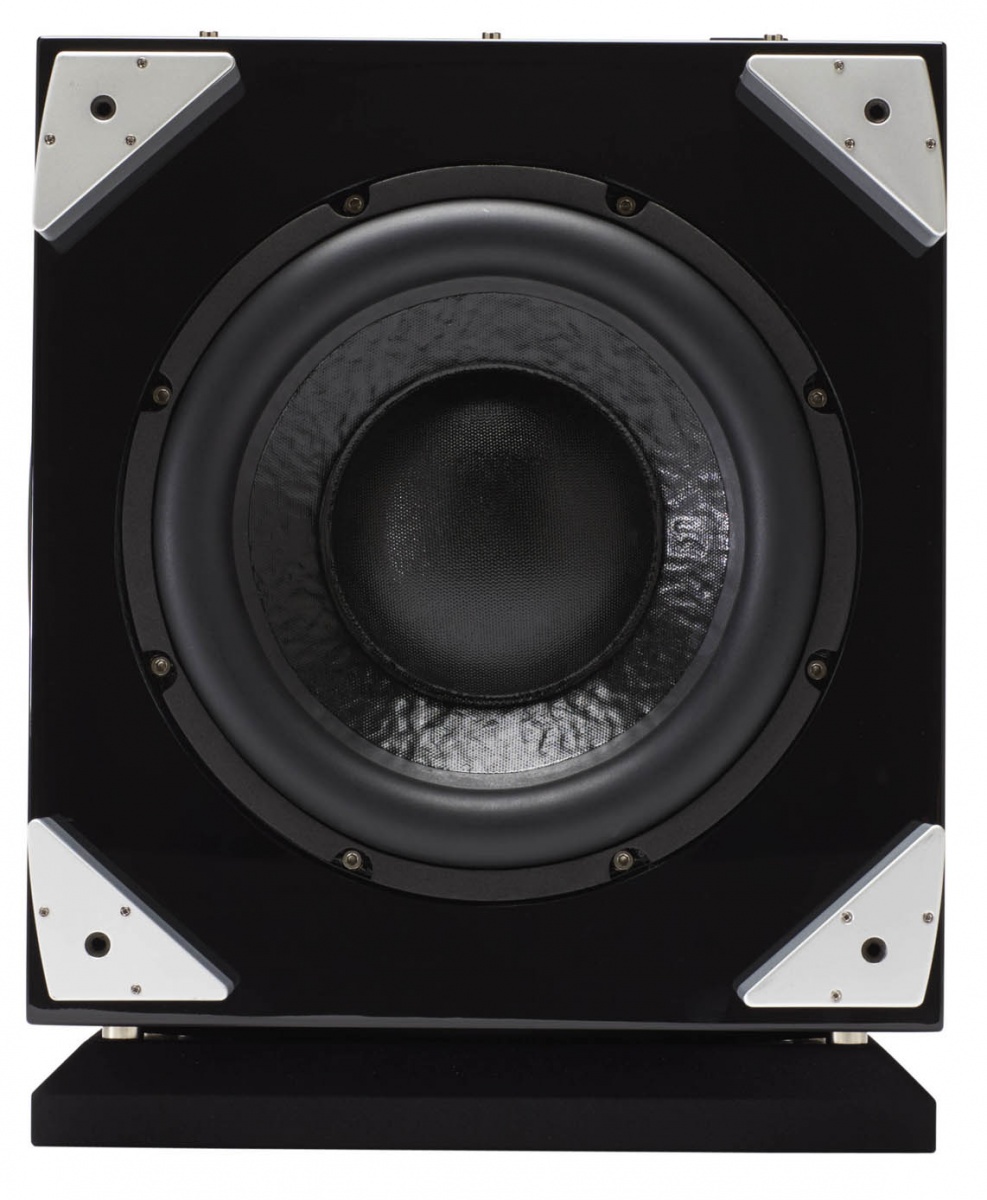

REL S2 Bottom

Seamless Sound

NextGen2 250W Digital Amplifier

Beyond the drivers, the performance of a REL is determined by the input filters and amplifiers. REL S/2 uses a simple filter-type that is very fast?about 8 milliseconds in group delay to get through to our driver. This speed and carefully sorted filters allows for seamless blending of RELs with the main speakers.

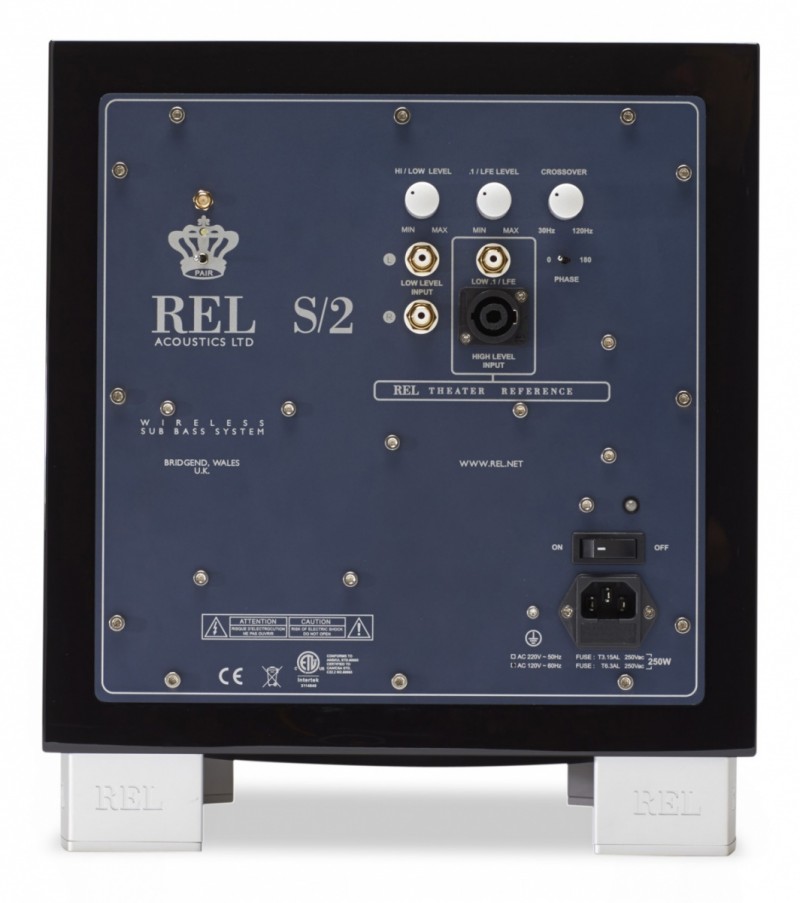

REL S2 Sub Black Rear

S/2's power amplifier is a powerful NextGen2 250W digital amplifier. This design has proven exceptionally reliable and very fast with deep, extended lows?it provides a perfect mate to its driver.

Specifications S/2Type:

Front-firing active woofer, down-firing passive radiator

Active Drive Unit: 10 in., 250mm long-throw, pressed Aluminium chassis

Passive Radiator: 10 in., 250mm

Lower Frequency Response in Room: 24Hz at -6 dB

Input Connectors: Hi Level Neutrik Speakon,Left and Right Lo Level phono,LFE phono,

SMA for wireless antenna

Gain Control Range: 80 dB

Power Output: 250 watts (RMS)

Phase Switch: Yes, 0 or 180 degrees

Amplifier Type: Next Gen II Class DREL

Longbow Wireless capability: Yes ? REL Longbow? transmitter [required],Sold separately

Protection SystemFully Electronic with SET-SAFE: YesD.C. Fault: YesOutput Short: YesMains Input Voltage: 220-240 volts, 110-120 volts for certain marketsFuses (semi delay): 3.15 Amp 220 volts operation6.3 Amp 120 volts operation

Dimensions (W x H x D)*: 13.75 x 14.5 x 16.75 in.,(349 x 368 x 425.5 mm)

Net Weight: 40 lbs. (18.1 kg)Shipping Weight: 47.5 lbs. (21.5 kg)

Finish (Gloss): Piano BlackWhite Lacquer

Supplied AccessoriesMains Lead: Yes

Neutrik SpeakonInterconnect 10 Metres Nominal: Yes
