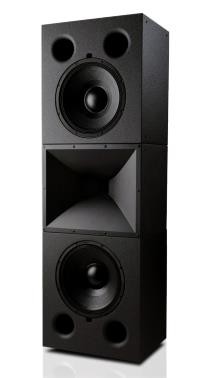

Pro Audio Technology SCR-2215sm
The best Left / Centre / Right Screen Channel speakers in the world. (More information)
- Availability:
- Call to Buy
- Categories:
- Home Cinema
- Sub-categories:
- Speaker
- Brand:
- Pro Audio Technology
- Delivery:
- Contact us for Delivery Charges
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Related Products (View more related products)
-
High-output, high-accuracy loudspeakers for residential installed surround sound and distributed audio.$10,999(per each) -
High-output, high-accuracy loudspeakers for residential installed surround sound and distributed audio.$14,999(per each) -
High-output, high-accuracy loudspeakers for residential installed surround sound and distributed audio.$6,499(per each) -
High-output, high-accuracy loudspeakers for residential installed surround sound and distributed audio.$6,999(per each)
Product Categories
Product Details
High-output, high accuracy loudspeakers for residential installed surround sound and distributed audio systems.
Sold as Each.
Each SCR-2215sm speaker requires 4x channels of Pro Audio Amplification, not included.
-------------------------------------
Recommended LCR System,
3x Pro Audio Technology SCR-2215sm - 3-way quad-amp (Screen channel speakers).
1x Pro Audio Amplifier MA-9942 (Left - LFx2, MF & HF)
1x Pro Audio Amplifier MA-9942 (Right - LFx2, MF & HF)
1 x Pro Audio Amplifier MA-9942 (Centre - LFx2, MF & HF)
Recommended Sub/s
1x Pro Audio Technology - LFC18sm, 18" primary sub
1x Pro Audio technology - LFC212ai, dual 12" subwoofer.
1x Pro Audio Technology MA9900 (1000w Primary Sub, 1000w rear Sub)
-------------------------------------
Enquire about our Cinema and Media Room design services
MAXIMUM OUTPUT DOUBLE 15" MODULAR FOUR-WAY SCREEN LOUDSPEAKER
SPECIFICATIONS:
- APPLICATION: Quad-amplified large format screen channel
- LF SECTION: Two 15" professional grade woofers with 4" voice coils
- MF-HF SECTION: State-of-the-art, wide-bandwidth (>20kHz) coaxial compression driver 90° x 60° horn
- CROSSOVER: 8th order acoustic via DSP
- POWER HANDLING: 2800W LF / 150W MF / 80HF
- SENSITIVITY: 102dB LF / 114dB MF / 114dB HF
- POWER REQUIREMENTS: Quad-amplification via PRO Amplified Loudspeaker Controller
- WIRING REQUIREMENTS: 8 conductors
- FREQUENCY RANGE: 32Hz ? 24kHz, -3dB
- MAXIMUM OUTPUT: >130dB
- NOMINAL IMPEDENCE: 4-ohms LF / 8-ohms MF/ 8-ohms HF
- DIMENSIONS: 66" H x 22" W x 16" D
- WEIGHT: 36 lbs. (MF-HF MODULE); 89 lbs. (LF MODULE, EACH)
Link to Pro Audio Technology Product Page - https://www.proaudiotechnology.com/scr2215sm
