Marantz SR7009 AV Receiver

With Wifi & Bluetooth

Imagine...

Nine strategically-located speakers with audio processing capabilities that go even further - handling up to 11.2 channels to fully support Audyssey DSX, DTS Neo:X 11.1, as well as the latest decoding technology Dolby Atmos - you will be flooded with the absolute ultimate in surround sound sensation, as well as preparing your system for 3D sound

What's more...

Because we have also upgraded to Audyssey MultEQ XT32 / LFC Pro you get an even more accurate calibration of the speaker system to guarantee that every seat in the room is a 'sweet spot' for audio. The SR7009 has WiFi and Bluetooth built-in and it supports Apple lossless, Gapless, FLAC HD 192/24 and even DSD and AIFF network streaming. Spotify Connect and AirPlay audio streaming are on board too.

We haven't changed everything...

We've kept the staggering impact of audio quality, which is quite simply an intoxicating mix of effortless power, amazing detail and sensational depth; all thanks to the use of Current Feedback Technology, HDAM pre-amplification and of course, the 200 watts of power output for each of those nine channels. Imagine enjoying this exceptionally superior audio performance for all your music and movie sources. The eight HDMI (4k/60Hz pass through / scaling) inputs and the two HDMI output sockets for the main room and second zone of video distribution. The SR7009 also includes ECO mode and Smart Select. The graphical user interface features a handy Set Up Assistant to get it all up and running with minimal effort.

Enough said?

MAIN FEATURES

• Wi-Fi and Bluetooth built in

• Dolby Atmos

• Dolby TrueHD and DTS HD Master Audio

• 9ch discrete power amplifiers, 200 W per channel

• 11.2ch signal processing and 13.2 Pre-out (with 2 independent subwoofers)

• Current Feedback circuitry with Marantz New HDAM

• Audyssey MultEQ XT32, LFC, Pro ready

• Audyssey DSX; dts-Neo:X (11.1ch)

• Latest HDMI version with 4k 60Hz 4:4:4 resolution

• 7+1 HDMI in / 3 out (4k 60Hz, 4:4:4, 3D, ARC, Deep Color)

• HDMI scaling 1080p, 4k 50/60Hz

• MP3, WAV, AAC, WMA, AIFF

• HD Audio streaming: FLAC 192/24, DSD, ALAC

• Gapless Playback

• Spotify Connect*, Flickr, Internet Radio support

• Phono (MM) input

• Setup Assistant and advanced GUI

• Big trapdoor design; Aluminium front panel

• Marantz Remote App for iOS and Android devices

• ECO mode


MULTICHANNEL SURROUND

• DTS HD Master / DTS 5.1 / DTS ES / DTS 96/24

• Dolby Digital Plus / Dolby TrueHD / Dolby Digital EX / DPL IIz

• Dolby Atmos

• Audyssey DSX

• dts-Neo:X (11.1ch)

• Multichannel Stereo

• Compressed audio Enhancer: MDAX2

NETWORK

• DLNA Certified (v1.5)
• Lossy formats MP3 / WMA / AAC
• Lossless formats FLAC / ALAC / WAV
• DSD Streaming (2.8 MHz)
• FLAC HD 192/24 / WAV 192/24 / ALAC 96/24
• Gapless playback (FLAC, WAV, ALAC, DSD)
• Photo streaming (JPEG)
• AirPlay audio streaming
• Windows PlayTo / Windows 8/RT compatible
• Internet Radio (vTuner) / Spotify Connect
• Compatible with Remote APP for Smart Phones Android/iOS
• Ethernet / Wi-Fi (dual antenna)

CONVENIENCE AND SOUND

• FM / AM Tuner (They're Back!)
• Current Feedback Topology
• Hyper Dynamic Amplifier Modules (HDAM)
• High grade audio components
• Bluetooth
• Auto speaker set up by microphone Audyssey Mult EQ XT32 (Pro)
• Audyssey Dynamic EQ / Dynamic Volume
• Video conversion CVBS > HDMI; Comp > HDMI
• Video processing >1080p, 4k 50/60Hz
• ISF Certification
• HDMI pass-through on stand-by
• 3D video pass-through / Audio Return Channel
• On Screen Display: Advanced GUI
• GUI overlay on HDMI
• Smart Select 4 presets
• Variable cross over
• 3 Multiroom zones

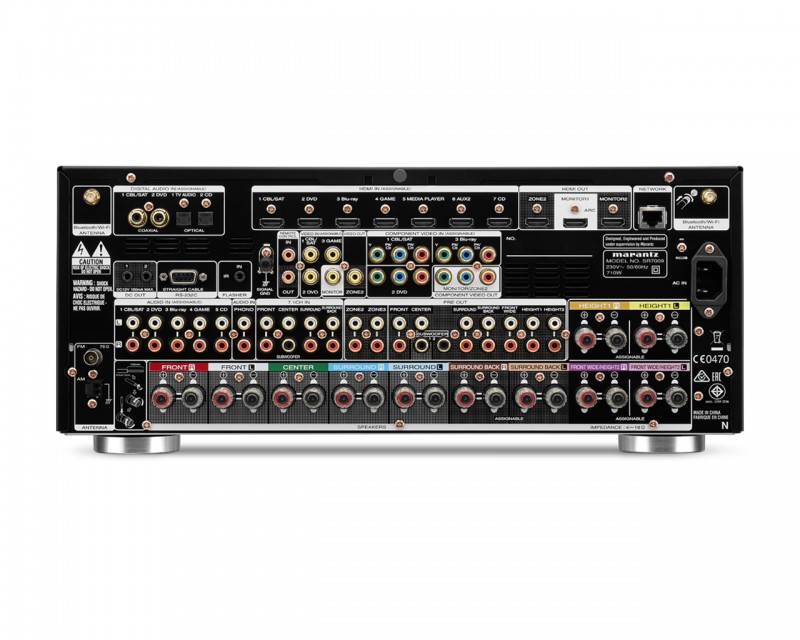

INPUT/OUPUT CONNECTIONS - VIDEO

• Composite In / Out - 3+1 / 2
• Component In / Out - 3 / 1
• HDMI In / Out - 7+1 / 3 (2 main + zone)

INPUT/OUTPUT CONNECTIONS - AUDIO

• Analogue In / Out - 5+1 / 0
• Digital Optical In / Digital Coaxial In - 2/2
• Multichannel Pre Out ? (13.2)
• Subwoofer Out - 2
• Zone audio preout
• 7.1 multichannel input

OTHER SPECIFICATIONS

• Gold-plated terminals
• Speaker A / B
• Height speaker terminal Speaker B or Height
• Bi-amp drive (5.1 ch setting)
• Multi-Room Speaker Terminal Surround Back assignable
• RS232 control
• IR Flasher In
• DC Trigger output
• Marantz remote bus
• Network: (IP-control / update)
• Front Inputs: HDMI / USB
• USB Audio / Made for iPod / Made for iPhone

AMPLIFIER POWER OUTPUT DETAILS

• 9 Discrete poweramps
• Power Output per channel
  - 6 ohm, 1 kHz, 1%, 1ch Drive 200 W
  - 6 ohm, 1 kHz. 0.7%, 2ch Drive 165 W- 8 ohm, 20 Hz
  - 20 kHz, 0.08%, 2ch Drive 125 W
• Audio Signal to Noise Ratio 98 dB

GENERAL

• Available colours: Black / Silver-Gold
• System Remote Control RC026SR
• Power Consumption in W 710
• Power Consumption No-Sound (ECO ...on/off) in W 65 / 110
• Standby Consumption in W 0.2 (with CEC 0.5)
• Maximum Dimensions (W x D x H) in mm 440 x 411 x 185
