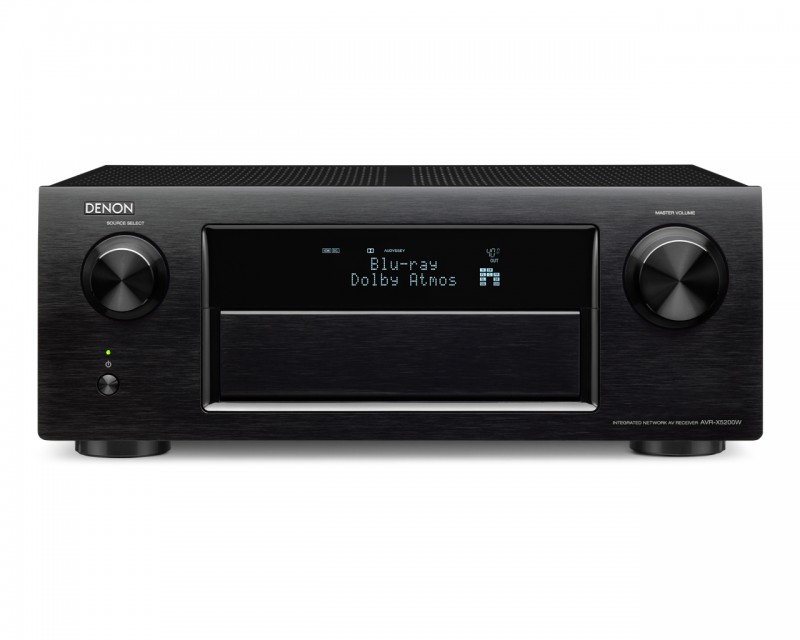

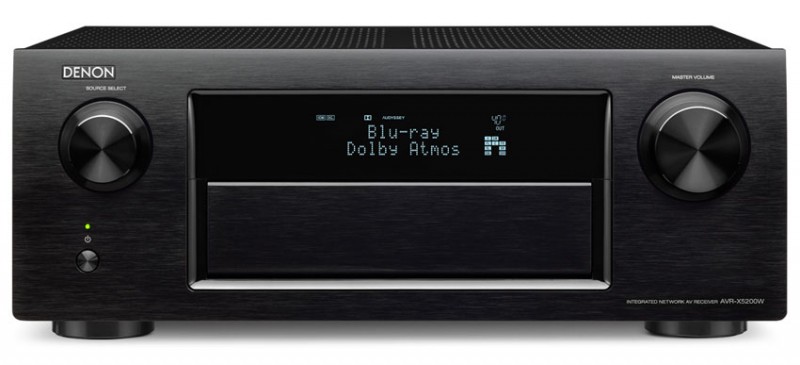

Denon AVRX5200 9.2 channel Network Home Theatre Receiver

TRUE VERSATILITY WITH BLUETOOTH^®,WI-FI AND BREATHTAKING DOLBY ATMOS^®

Introducing a big fi sh from our all-new X-Series: the AVR-X5200W is a powerful 9 channel amplifier with 11.2 channel processing and 13.2 preout. A discrete monolithic amplifier with custom made DHCT (Denon High Current Transistors), to be precise. With dual Wi-Fi antenna and Bluetooth built-in, it is perfectly set for all wireless services. Thus its native support for Spotify Connect, gapless playback capability and DSD streaming round up the immaculate network experience. Via its 8 HDMI inputs (including one on the front panel) it handles 4k 60Hz pass through playfully, and even upscales video to 1080p and 4k 60Hz. Now add brandnew Dolby Atmos, triple HDMI outputs with multi-source/multizone functionality and integrated Audyssey MultEQ XT32/LFC to guarantee the ideal calibration of your setup and you understand the ?big" in fish.

Built-in Bluetooth, Wi-Fi, AirPlay and DLNA

Stream your favourite tracks wirelessly to the AVR-X5200W directly from your Bluetooth-enabled portable devices, such as a smartphone, portable media player and tablet. The AVR-X5200W can recognize and remember up to 8 Bluetooth portable devices, so your family and friends can enjoy their favourite tracks. With the built-in Wi-Fi feature, you can connect the AVR-X5200W to your home network wirelessly and open up a whole new world of content streaming functions, including thousands of internet radio stations as well as the ability to stream subscription service Spotify via very latest Spotify Connect scheme. With AirPlay, you can wirelessly stream your favourite audio tracks directly from your iOS device, including the iPod, iPod touch and Pad. DLNA 1.5 certification lets you enjoy streaming content via your PC, Mac or Android device. Via our Denon Remote App, you can wirelessly control the AVR-X5200W from your favourite portable device. The Denon Remote App is available in iOS and Android versions, and is also available for the Kindle Fire.

Equipped with 7+1 input and 2+1 output HDMI terminals that fully support next-generation 4K displays

Eight systems are provided for the 4K video signal supporting HDMI input. One of these systems is located at the front so that you can easily enjoy video from a movie camcorder, game console, or smart phone. The HDMI output has a new terminal for zone output in addition to 2 systems capable of simultaneous output to allow the HDMI input video and audio to be output to a sub-zone.

Powerful 9 Channel Discrete Amplifier with Eco Mode

With each channel rated at a maximum power of 205 watts, the AVR-X5200W features a monolithic power amplifier design with Denon custom made transistors and identical circuit topology on all 9 channels. Our new Eco Mode provides the ability to reduce overall power consumption and features an on-screen Eco Meter that lets you see the power consumption reduction effect. The Auto Eco mode automatically switches between normal and Eco modes, depending on the volume level chosen, and the power amplifier block is rated to drive low impedance speaker loads, down to 4 ohms, for compatibility and stability with virtually any loudspeaker model.

Audyssey MultEQ-XT32 / LFC

It is the most accurate room correction solution with more than ten thousand individual control points allowing finer details of the room's problems to be captured and corrected. The ultra high resolution filters are applied to all channels including the two independent subwoofers, with the most obvious benefit being heard in the low frequency range where correction is needed the most. Audyssey LFC uses psychoacoustic algorithms to prevent bass from passing your walls and disturbing your neighbours while maintaining the bass performance in the listening room. The AVR-X5200W is also Audyssey Pro ready for the most advanced professional room correction.

Dolby Atmos

With Dolby Atmos, sound comes alive from all directions, including overhead, to fill the home theater with astonishing clarity, power, detail, and depth. The AVR-X5200W has the processing power to run a more enveloping, Audyssey MultEQ XT32 calibrated 7, 9 or 11 channel Dolby Atmos layout using 5.1.2, 5.1.4, 7.1.2, 7.1.4* or 9.1.2* configurations utilizing ceiling mounted, or Dolby Atmosenabled speakers. A 5.1.2 or 5.1.4 speaker configuration is based upon a traditional 5.1 speaker layout complemented by 2 or 4 overhead or Dolby Atmos-enabled speakers. A 7.1.2 or 7.1.4 configuration is based on a 7.1 speaker layout with 4 overhead, or Dolby Atmos-enabled speakers. A 9.1.2 configuration is based on a 9.1 speaker layout with 2 overhead speakers.

* with additional power amplifier

Multiroom / Multisource

The AVR-X5200W lets you enjoy a program source in the Main Zone (the room where the AVR-X5200W is located) and in Zone 2 and Zone 3. The source can be the same for all zones, or you can enjoy different sources in those zones if you prefer. The sources for the zones can be either analog or 2 channel digital PCM sources (incl. optical, coaxial, HDMI and network).

NEW FEATURES

• Built in Wi-Fi with dual antenna
• Built-in Bluetooth
• Latest HDMI standard with 4K Ultra HD Scaling up to 60Hz and 4:4:4 colour resolution
• Dolby Atmos (5.1.2, 5.1.4, 7.1.2, 7.1.4*, 9.1.2*)
• 8 HDMI inputs (incl. 1 front)
• Three HDMI outputs (2 main + zone out)
• 11.2ch processing 13.2ch pre-out
• ISF certification
• DSD streaming
• AIFF streaming
• Spotify Connect (where available)
• ECO mode with off/on/auto setting

* with additional power amplifier

STATE-OF-THE-ART DENON SOLUTIONS FOR MAXIMISING CONTENT QUALITY

• Monolithic amplifier design with identical quality and power for all 9 channels (205 watts per channel)
• Dynamic Discrete Surround Circuit, D.D.S.C-HD with AL24 Processing Plus, Denon Link HD
• Dolby Atmos, Dolby TrueHD and dts-HD Master Audio
• High-performance 192kHz/24-bit D/A converters for all channels
• Audyssey DSX and DTS Neo:X 11.1 for the ultimate surround experience
• Digitally transmitted Play function for iPod and iPhone(via USB) for best sound quality
• Support 4K video to enjoy 4 times higher resolution videos than current HD on larger displays and screens.
• Audyssey MultEQ-XT32 for higher resolution room correction
• Audyssey LFC for best late-night bass experience without disturbing neighbours

EASE-OF-USE AND OTHER FEATURES

• Setup Assistant, providing easy-to-follow setup instructions with Graphical User Interface
• Horizontal colour-coded layout of speaker terminals for easy connection
• Label sheet for marking Speaker Wires & HDMI Cables
• Audyssey Dynamic Volume, for real-time volume adjustment
• Audyssey DynamicEQ, improves surround effects during low volume levels
• Comes with simple, easy-to-use remote control handset
• Denon Remote App for iOS and Android
• 4 Quick Select buttons and RC buttons - can be used to store favourite sources, internet radio stations and preferred settings
• Sleep Timer, set up to 120 minutes in 10-minute increments
• Standby HDMI Pass through
• RS232C for custom installation purpose
• 3 Zones Multiroom-Multisource
