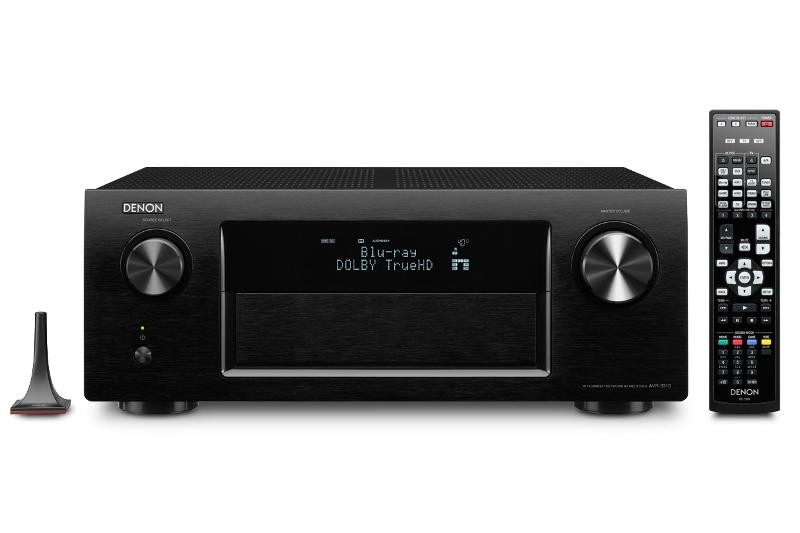

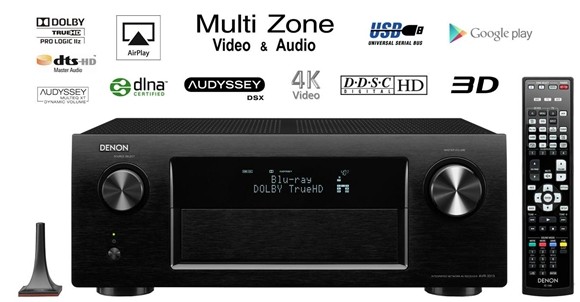

DENON AVR3313 - 7.2 Integrated Network Receiver

AVR3313 Premium Quality 7.2 Integrated Network AV Receiver with Zone 2 HDMI

Performance features

• Pure Audio Construction featuring;
  • Fully discrete identical Single Push Pull power output transistors for each channel (not IC power packs)
  • Minimum Signal path for clearest, interference free audio and video signals
  • Direct Mechanical Ground construction for vibration free performance guaranteeing longer life
  • Custom made Block capacitors
  • Very stable power supply for the best possible sound and video reproduction
• DDSC-HD, Dynamic Discrete Surround Circuit ? High definition
• AL24 Plus Processing for superior PCM audio performance
• Digital Clock Jitter reducer
• Denon Link HD
• Full High Definition audio decoding
  • Dolby TrueHD
  • dts HD Master audio
• Dolby Pro Logic IIz
• Audyssey DSX processing
• Audyssey MultEQ XT Room & Speaker calibration
• 7 x HDMI V1.4a inputs
• One cable HD Solution - Analogue video to HDMI conversion
• 4K video pass through
• 4K video scalar
• 3D video pass through
• Deep Colour
• ?x.v. Colour"
• HDMI control feature
• ARC, audio return channel
• Auto Lip sync
• HDMI Pass through in standby mode
• Compressed Audio Restorer
• FM radio tuner

Network and Digital Media features

• AirPlay audio support
• Direct Digital iPhone compatible USB
• USB charges iPod/iTouch/iPhone/iPad
• Denon Remote iOS App available free of charge from iTunes store
• Denon Remote Android APP available free of charge from Google Play
• Ethernet connection
• Spotify (firmware update due Spring 2012)
• DLNA certified for audio & photo streaming
• IP control via network
• Compatible with Windows 7
• FLAC & WAV 192kHz / 24 HD compatible
• Internet Radio
• Free access to vTuner website via www.radiodenon.com for easy setup of Internet Radio favourites and podcasts.
• Internet radio stations can be saved as a pre-set on remote control
• Firmware updates & upgrades via the Internet or USB

Assignable Surround back amplifiers

• Surround Back
• Zone 2 Stereo
• Zone 3 Stereo
• Zone 2 & 3 Mono
• Bi-amp
• 2 Channel
• Front speaker B

Custom Install features

• 3 Zone / 3 Source Multi Room
• Zone 2 & 3 pre outs
• PCM digital to analogue conversion for Optical & Coaxial input for Zone 2 & 3 playback
• Independent HDMI video and Audio in Zone 2
• Component video in Zone 2
• RS232C
• Remote control in and output
• 2 x 12 volt trigger output / max 150mA
• Assignable SB amps for zones
• Independent speaker terminals for Front Height & Front Width channels
• ELAN, RTI, Control 4 certified integration partners
• AMX Discovery partner
• Crestron integration partner
• Audyssey Installer program ready

Convenience features

• New Easy Set-up assistant
• GUI (Graphic User Interface) overlay on HDMI source
• Audyssey Dynamic Volume to level out TV volume levels
• Audyssey Dynamic EQ for great surround sound effects even at low volume levels
• 4 Quick select buttons
• Phono input
• New simple to use remote control handset Sleep timer function
• Audio level memory of individual input adjustments
• Audio delay adjustments for each input (6 frames or 200ms)
• Adjustable muting levels
• Dual subwoofer outputs
• Variable subwoofer crossover frequencies
• Lower power consumption of 0.1w in standby mode

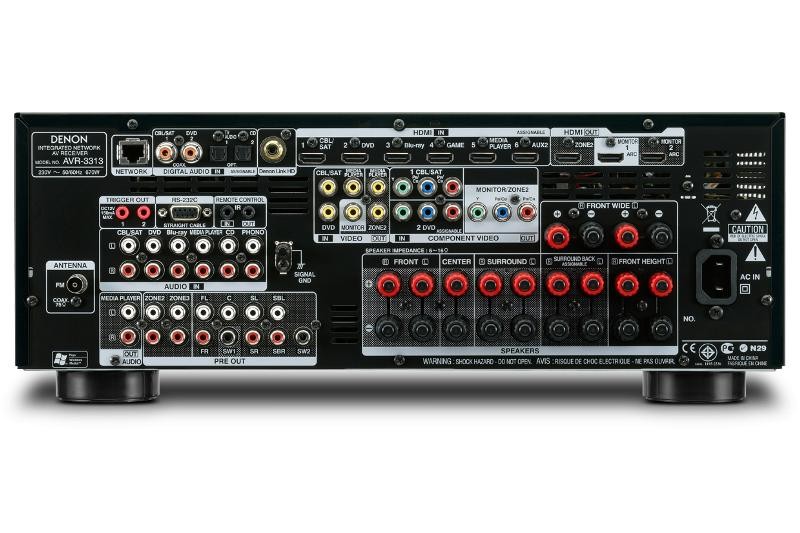

Connections

Inputs

• 7 x HDMI (including front x 1)
• 2 x Component video
• 4 x Composite video (including front x 1)
• 7 x Analogue audio (including front x 1)
• 2 x Digital Coaxial
• 2 x Digital Optical
• 1 x Denon Link HD

Outputs

• 2 x HDMI monitor with simultaneous signals
• HDMI for Zone 2
• 1 x Component video for Main Zone or Zone 2
• 3 x Composite video
• 7.2 Audio pre-outs
• 2 x Zone pre-outs
• 1 x L&R Media player audio outs
• 1 x headphone socket

Other

• 1 x Ethernet
• 1 x USB
• 1 x Microphone port
• 1 x FM antenna
• 1 x Remote Control in & out
• 1 x RS232C
• 2 x 12 volt / 150mA trigger out

Main specifications

• All THD (total harmonic distortion) levels are measured at power amp section levels (not pre-amp)
• 7 channels x 165 watts @ 6 ohms, 1kHz, 0.7%THD
• 7 channels x 125 watts @ 8 ohms, 20Hz to 20kHz, 0.05% THD
• Dimensions (W x H x D) 434 x 167 x 379
• Weight 12.0kgs
