Rotel RA-1570 Integrated Amplifier
Rotel RA-1520 Integrated Amplifier (More information)
- Availability:
- Discontinued
- Categories:
- Hi-Fi
- Sub-categories:
- Stereo Amplifiers
- Brand:
- Rotel
- Delivery:
- Contact us for Delivery Charges
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Buy this Product
Your Price
$2,399
(each)
Contact us for Delivery
This product is currently unavailable to order.
Related Products (View more related products)
-
Hybrid Digital Integrated Amplifier$1,299(per each) -
Musical Fidelity M8xi - Stereo Integrated Amplifier
The M8xi is a Super Integrated Amplifier.$13,800(per each) -
Musical Fidelity M3Si Stereo Integrated Amplifier
... is a new Integrated Amplifier offering a real taste of high-end sound quality.$2,700(per each) -
Marantz STEREO 70s: Slimline Stereo Receiver
Get serious home entertainment with only two speakers. All the tech found in full-size AV receivers in a slimline, stereo receiver with HDMI switching, HEOS streaming built-in, Phono and FM/DAB+ radio.$1,700
Product Categories
Product Details

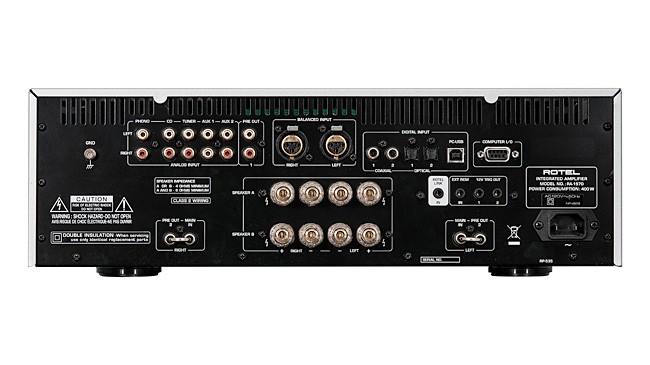

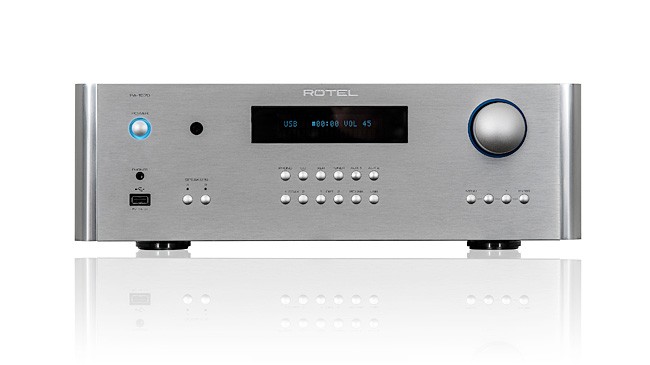

The RA-1570 combines proven analogue design with the most musical digital circuits to bring all of your sources to life with amazing fidelity. The amplifier provides a front panel USB input, making it easy to connect a wide variety of music storage devices including iPods®, iPhones®, and iPads® and the supplied Bluetooth dongle. Supported formats include MP3, WAV, and WMA files for maximum flexibility. Meanwhile a custom-designed transformer keeps the audio signal pure and uncorrupted, while the robust continuous output of 120 Watts per channel provides all the power and presence you need. The Class AB output stage uses discrete devices to ensure precise reproduction of all signals with virtually any loudspeaker.
| Continuous power output (20hz ? 20khz, < 0.03% Thd, 8 ohms) | 120 Watts/channel |
| Total harmonic distortion (20Hz-20khz) | < 0.03% at rated power |
| Frequency response Line level inputs | 10Hz-100kHz (+1, ?3 dB) |
| Damping factor (20Hz-20khz, 8 ohms) | 180 |
| Input sensitivity / impedance Phono input (mm) Line level inputs (RCA) Line level inputs (Balanced) | 2.25mV / 68k ohms 285mV / 100k ohms 570mV / 50k ohms |
| Preamplifier output / impedance | 1.5V / 470 ohms |
| Signal to noise ratio (IHF ?a" weighted) Phono input Line level inputs | 80 dB 100 dB |
| Preout level/impedance | 1.2 V/ 470 ohms (at -20 dB) |
| USB/iPod® digital signals | WAV, MP3, WMA (up to 48kHz 16 bit) |
| Coaxial/optical digital signals | SPDIF LPCM (up to 192kHz 24 bit) |
| PC-USB | USB Audio Class 1.0 (up to 24 bit/96kHz) USB Audio Class 2.0 (up to 24 bit/192kHz)* *Driver installation required |
| Power requirements USA EC | 120 volts, 60Hz 230 volts, 50Hz |
| Power consumption | 400 watts |
| Standby power consumption | < 0.5 watts |
| Dimensions (W x H x D) mm (W x H x D) in | 431 x 144 x 350 mm 17 x 5 7/8 x 13 3/4 in |
| Front panel height U/mm/inch | 3U / 132.6mm / 5 1/4 in |
| Weight (net) | 13kg, 28.7 lb |
