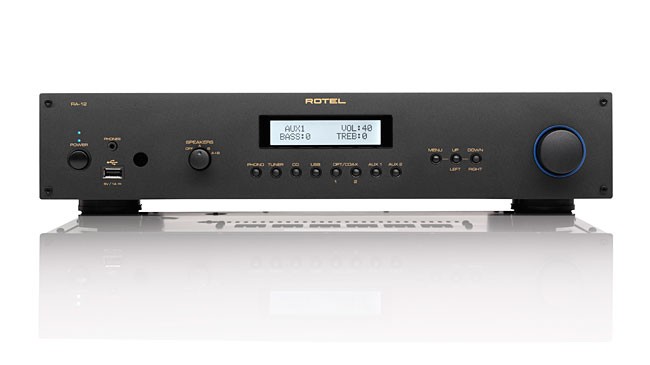

Rotel RA-12 Integrated Amplifier
Rotel RA-12 Integrated Amplifier (More information)
- Availability:
- Discontinued
- Categories:
- Hi-Fi
- Sub-categories:
- Stereo Amplifiers
- Brand:
- Rotel
- Delivery:
- Contact us for Delivery Charges
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Buy this Product
Your Price
$1,199
(each)
Contact us for Delivery
This product is currently unavailable to order.
Related Products (View more related products)
-
NAD C368 hybrid digital DAC amplifier
Classic Amplifiers. Intelligent. Powerful. Efficient.$1,899(per each) -
Yamaha R-N800A Network Receiver
From streaming services to high-resolution sound sources, the Yamaha R-N800A delivers music enjoyment with a modern HiFi style.$1,699(per each) -
Denon: PMA-1700 Stereo Integrated Amplifier
Featuring advanced ultra-high current single push-pull circuit power with Advanced AL32 Processing Plus, the Denon PMA-1700NE integrated amplifier delivers music that’s faithful to the original recording.$3,299(per each) -
Musical Fidelity M3Si Stereo Integrated Amplifier
... is a new Integrated Amplifier offering a real taste of high-end sound quality.$2,700(per each)
Product Categories
Product Details
The amplifier has always been the heart of a hi-fi system, but for the new audio landscape, amplifiers need 'brains'. The brain of the RA-12 is the Wolfson WM8740 24 bit/192kHz DAC, most often found in high-end audio products, and it ensures that the RA-12 extracts the full potential from its digital and Apple® authorised USB inputs. Traditional audio is not forgotten however so the RA-12 also provides four analogue line-level inputs and a phono input. The RA-12 can be controlled from its front panel buttons, via a remote handset, or via an RT-12 and the Rotel Remote app for iPhone and iPad. The RA-12 is however not just about versatility, it is a very high performance 60 Watts per channel amplifier that puts music at the top of its priorities.
| Model | RA-12 |
| Continuous Power Output | 60Watts/ch (20-20kHz, < 0.03%, 8?) |
| Total Harmonic Distortion (20Hz-20kHz) | < 0.03% at rated power |
| Intermodulation Distortion (60 Hz:7 kHz, 4:1) | < 0.03% at rated power |
| Frequency Response | Phono input 20Hz-15kHz, ±0.3dB Line Level Inputs 10Hz-100kHz, ±1dB |
| Input Sensitivity / Impedance | Phono input 2.5mV / 47 k ? Line Level Inputs 150mV / 24 k ? |
| Input Overload | Phono input 180mV Line Level Inputs 5V |
| Preamp Output / Impedance | 1V / 470? |
| Tone Controls - Bass / Treble | ±4 dB at 100Hz / 10kHz |
| Signal to Noise Ratio (IHF ?A" weighted) | Phono input 80dB Line Level Inputs 100dB |
| Digital Section | - |
| Frequency Response | 10Hz-95kHz ±3.0dB (MAX) |
| Signal to Noise Ratio (IHF ?A" weighted) | 100dB |
| Input Sensitivity/Impedance | 0 dBfs/75V |
| Pre-out/Impedance | 1.2V/470V (at -20dB) |
| Decodable Front USB/iPod Digital Signals | AAC (m4a), WAV, MP3, WMA (up to 48K 16bit) |
| Coaxial/Optical PCM | LPCM |
| File Formats | Real Audio, MP3, OGG Vorbis, WAV, AIFF and AU |
| General | - |
| Power Requirements (AC) | 120V, 60Hz (USA) 230V, 50Hz (Europe) |
| Power Consumption | 300Watts |
| Standby Power Consumption 0.5W | 0.5Watts |
| Dimensions (W x H x D) | 430 x 92 x 342mm (17 x 3 5/8 x 13 1/2 ins) |
| Panel Height | 80mm (3 1/16 ins) |
| Weight (Net) | 8.02kg (18lbs) |

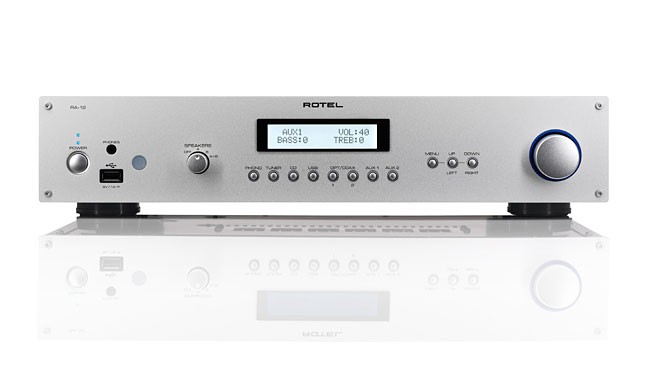

| Finishes | Black, Silver |
