Musical Fidelity MX-HPA balanced headphone amplifier

  • Home /
  • Headphones /
  • Musical Fidelity MX-HPA balanced headphone amplifier
Musical Fidelity MX-HPA balanced headphone amplifier

The MX-HPA is a fully balanced ultra performance headphone amp. (More information)

 Need affordable installation?

Availability:
Call to Buy
Categories:
Headphones
Sub-categories:
Module Accessory
Brand:
Musical Fidelity
Delivery:
Contact us for Delivery Charges
Need Affordable Installation?

For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .

Buy this Product

Your Price $1,525 (each)
Contact us for Delivery

This product is each.

Order this product by calling us on 1300 721 480.

 Call to Buy

Vision Hifi is an Authorized Reseller. Order this product by calling us on 1300 721 480.

Related Products (View more related products)

Product Categories

Product Details

X-HPA - Overview

Note: Not available in all countries

Years of experience in making high quality headphone amps have been distilled into the design of the MX-HPA. As a result, this fully-balanced headphone amp offers an awe-inspiring listening experience.

The MX-HPA's technical performance is stunning. Typically, distortion from 20 Hz to 40 kHz is less than 0.005%. Signal-to-noise ratio is better than 120dB ('A' weighted). Frequency response is ruler flat from 10 Hz to 20 kHz (-0.1dB).

The MX-HPA is capable of a short-term peak of 10 watts (for one cycle) and has two gain positions: 18dB (8X) and 24dB (15X). Inputs are either balanced or single-ended. The MX-HPA will automatically convert single-ended inputs to balanced. The MX-HPA is genuinely fully balanced from beginning to end.

MX-HPA In Brief

  • Fully balanced, studio design, purist headphone amplifier
  • Incredible technical performance
  • Will drive any headphone with ease
  • Wide bandwidth: 10Hz-40kHz at +0, -3dB
  • Very low noise
  • Very low distortion: < 0.003%, 20Hz to 20kHz
  • Outstanding channel separation
  • Powerful, muscular, output into 32 ohms
  • Beautiful aesthetics and build quality

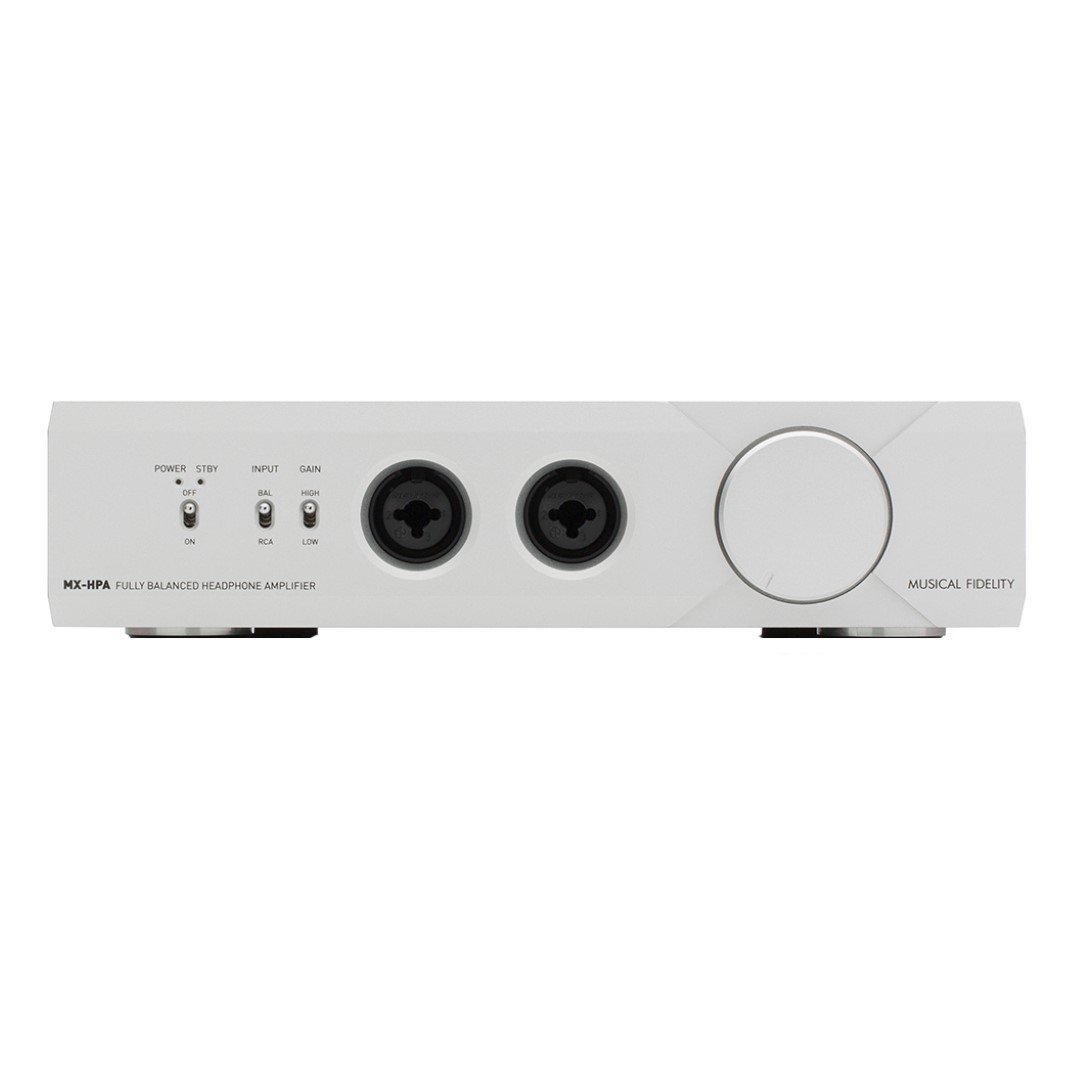

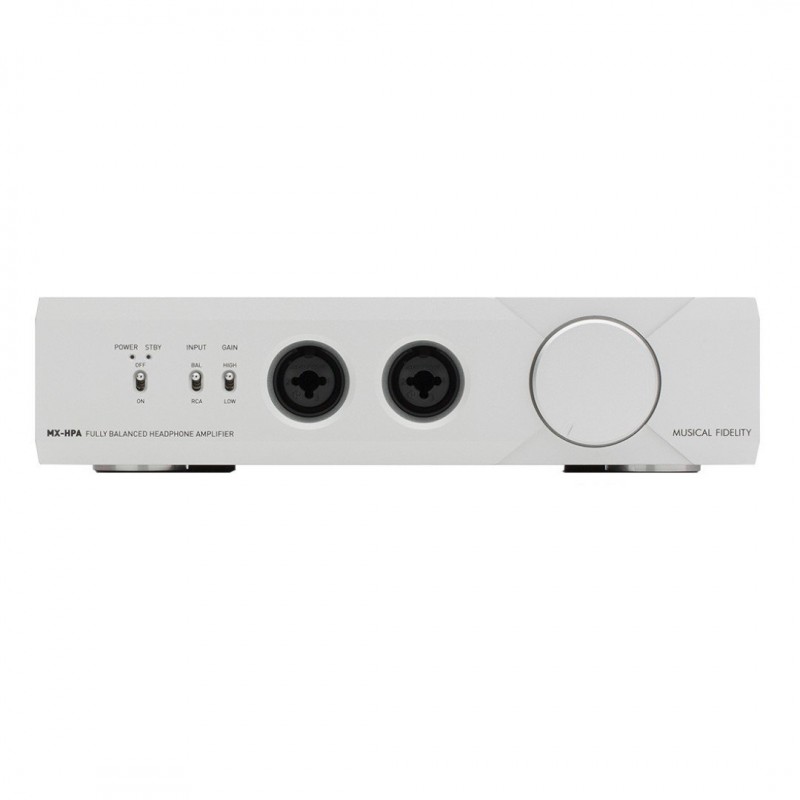

Musical Fidelity MX HPA Front

MX-HPA - Specifications

Output

  • Power 1.8 Watts per channel into 8 Ohms (27dBW)
  • Maximum output voltage 19 Volts RMS, 20Hz to 20 kHz
  • Onset of clipping (54 Volts peak-to-peak) balanced

Line input

  • THD+N >0.005% typical, 20Hz to 20 kHz
  • Signal / noise ratio >120dB 'A'-weighted
  • Input impedance 50k Ohms
  • Frequency response +0, ?0.1dB, 10Hz to 20 kHz
  • Gain, LO position (volume max) 18db (8x)
  • Gain, HI position (volume max) 24dB (15x)

Connections

  • Line level inputs
  • 1 pair line level XLR (balanced) connectors
  • 1 pairs line level RCA connectors
  • Headphone outputs
  • 1 pair 3-pin XLR/¼" stereo Jack combined sockets

Power requirement

  • Mains voltages 90-250VAC 50-60Hz universal worldwide supply
  • Consumption >0.25 Watts standby (Orange LED lit)
  • 15 Watts maximum (Blue LED lit, full power output)

General

  • Dimensions - WxHxD (mm): 220 (82/3") x 53 (2") x 240 mm (9½")
  • Weight (unpacked / packed): 2.2 kg (5 lbs) / 3.7 kg (8¼ lbs)
