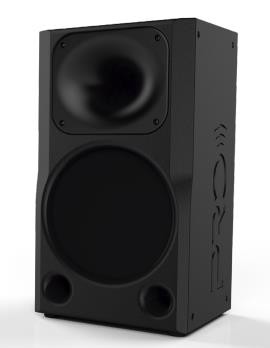

Pro Audio Technology S-12sm
High-output, high-accuracy loudspeakers for residential installed surround sound and distributed audio. (More information)
- Availability:
- Call to Buy
- Categories:
- Home Cinema
- Sub-categories:
- Speaker
- Brand:
- Pro Audio Technology
- Delivery:
- Contact us for Delivery Charges
Need Affordable Installation?
For our Adelaide customers, Vision Hifi offers a range of affordable installation services for your home or office. Discover our Installation Services .
Related Products (View more related products)
-
High-output, high-accuracy loudspeakers for residential installed surround sound and distributed audio.$9,999(per each) -
High-output, high-accuracy loudspeakers for residential installed surround sound and distributed audio.$13,499(per each) -
High-output, high-accuracy loudspeakers for residential installed surround sound and distributed audio.$6,999(per each) -
Pro Audio Technology SCRS-6iw-P
High-output, high-accuracy loudspeakers for residential installed surround sound and distributed audio.$5,699(per each)
Product Categories
Product Details
High-output, high accuracy loudspeakers for residential installed surround sound and distributed audio systems.
Sold as Each.
Each S-12sm speaker requires 2x channels of Pro Audio Amplification, not included.
-------------------------------------
Recommended LCR System,
3x Pro Audio Technology S-12sm - 2-way bi-amped (Screen channel speakers).
1x Pro Audio Amplifier PMA-9942 (Centre & Both Subs)
1x Pro Audio Amplifier PMA-4242 (Left & Right Front Speakers)
Recommended Sub/s
1x Pro Audio Technology - LFC18sm, 18" primary sub
1x Pro Audio technology - LFC212ai, dual 12" subwoofer
-------------------------------------
Enquire about our Cinema and Media Room design services
HIGH OUTPUT 12" MULTI-USE LOUDSPEAKER
SPECIFICATIONS:
- APPLICATION: Bi-amplified medium format multipurpose loudspeaker
- LF SECTION: 12" professional grade woofer with 4" voice coil
- HF SECTION: 1.7" professional-grade compression driver with advanced polymer diaphragmon 80° x 60° elliptical horn
- CROSSOVER: 8th order acoustic via DSP
- POWER HANDLING: 1400W LF / 100W HF
- SENSITIVITY: 93dB LF / 108dB HF
- POWER REQUIREMENTS: Bi-amplification via PRO Amplified Loudspeaker Controller
- WIRING REQUIREMENTS: 4 conductors
- FREQUENCY RANGE: 38Hz ? 22kHz, -6dB
- MAXIMUM OUTPUT: 128dB
- NOMINAL IMPEDENCE: 4-ohms LF / 8-ohms HF
- DIMENSIONS: 25" H x 14" W x 12" D
- WEIGHT: 63 lbs.
Link to Pro Audio Technology Product Page - https://www.proaudiotechnology.com/s12sm
